Analysis of process parameters and common problems of wave furnace

Wave furnace process parameter optimization and common defect solutions

In the large-scale production of the electronics manufacturing industry, the wave furnace, as the core equipment for through-hole component welding, directly determines the welding quality and production efficiency of the product due to its precise control of process parameters. The wave soldering process involves multiple links such asПоток coating, preheating, tin infiltration, cooling and solidification, and there is a complex coupling relationship between the parameters of each link - a slight adjustment of a certain parameter may trigger a chain reaction, resulting in significant changes in the morphology, strength and reliability of the solder joint. Based on thousands of batches of production practice data, this paper systematically sorts out the process parameter system, tin wave morphological characteristics and common defect solutions of wave furnaces, and provides a practical process optimization solution for electronic assembly enterprises.

flux coating process and tin wave morphology design

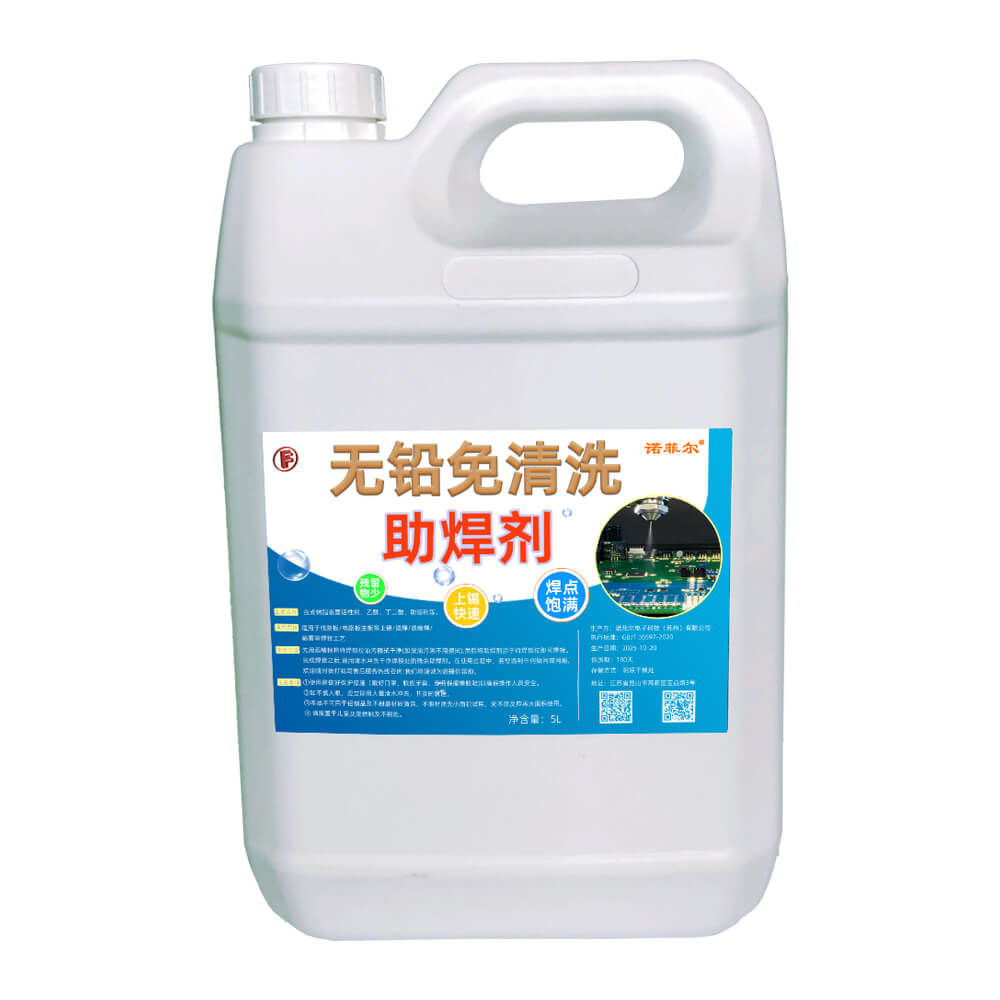

As a key auxiliary material for wave soldering, the coating quality of Потокdirectly affects the wetting effect of subsequent soldering. According to the equipment structure and process requirements, the mainstream coating methods can be divided into three categories: foaming, spraying, and spraying, each with its own technical characteristics and applicable scenarios:

1.              Foam coating process

This process uses compressed air to create a uniform foam of the flux inside the foam tank, and the coating is completed when the PCB comes into contact with the foam. The core control point is the dynamic balance of flux concentration – since alcohol solvents (such as isopropyl alcohol) can volatilize at a rate of 0.5-1.2g/h (25°C) in the production environment, every 5% increase in concentration can lead to a 30% increase in post-solder residue and yellowing of the PCB board. In practice, a hydrometer should be used to monitor every 2 hours, and when the concentration exceeds the standard value of 1.2%, a special diluent (usually a mixture of ethanol and glycol ether) should be added in a ratio of 1:10.

The maintenance of the foam tank is also crucial: the foam tube needs to be disassembled and cleaned every week to remove the flux residue (mainly composed of rosinate metal salts) attached to the inner wall, otherwise it will lead to uneven foam, forming large bubbles with a diameter of > 3mm, causing the coating amount to fluctuate by more than ±20%. The practice of a consumer electronics company shows that standardized foaming system maintenance can increase the solder joint pass rate by 4.5%.

2.         Spray coating process

The pneumatic atomization nozzle is used to uniformly spray the flux in the form of micron-sized droplets (5-50μm in diameter) on the PCB surface, suitable for high-density, fine-pitch complex boards. The advantages over the foaming process are:

High coating accuracy: the film thickness control deviation can be ≤ 5μm to meet the welding requirements of 0.8mm pitch components;

Material utilization: up to 85% or more, saving 30% flux compared to foaming process;

Environmentally friendly: Sealed piping design reduces VOC emissions by 60%.

The spraying process has special requirements for flux characteristics: the solid content needs to be ≤5% (rosin resin content ≤3%), otherwise it is easy to cause nozzle blockage (the clogging rate is positively correlated with the solid content, R²=0.91); Viscosity should be controlled at 15-25cP (25°C), too high viscosity will lead to poor atomization and the formation of droplet buildup. An automotive electronics manufacturer reduced the bridging defect rate from 2.1% to 0.3% by selecting a special spray flux.

3.         Jet coating process

The flux is sprayed directly from a small nozzle (0.3-0.5mm diameter) to a designated area via a pressure pump, which has been used in local coating scenarios. However, due to its inherent defects - the nozzle is prone to wear and tear, resulting in coating deviation (±0.1mm per month), material waste rate of up to 40%, and high maintenance cost (30% nozzle replacement per month), the current market share is less than 5%, and it is gradually replaced by the spraying process.

The reasonable selection of tin wave form needs to match the component distribution characteristics of the PCB:

Single-wave system: The tin liquid forms a single arc crest (height 15-25mm) through the deflector, suitable for pure cartridge PCBs or simple mixed boards. Its advantages are simple structure, easy maintenance, and the amount of tin slag generated is 15-20% less than that of double peaks;

Double crest system: composed of turbulent waves and smooth waves. The first wave (turbulent wave) is 20-30mm high, ensuring through-hole component solder filling by violent solder disturbance; The second wave (smooth wave) is 10-15mm high and has a smooth flow rate, which is used to eliminate bridging and shape solder joints. In mixed board soldering with SMT components, the double wave can increase the solder joint qualification rate by 10-15%.

A comparative test of a communication equipment company showed that the through-hole filling rate of the same PCB during single-wave soldering was 82%, while the double-wave process could reach 98%, and the appearance consistency of the solder joints was significantly improved.

Scientific setting of core process parameters

The parameter setting of the wave furnace should be based on the three-dimensional balance between material properties, equipment performance and product requirements, and any isolated adjustment of parameters may lead to process instability.

1. Optimization of preheating system parameters

The core goal of preheating is to achieve "gradient warming" – controlling the PCB solder surface temperature at 90-110°C before solder contact to ensure that the flux is fully activated (oxide layer removed) and that the components are not subjected to excessive thermal shock. The following factors should be considered in its parameter setting:

PCB thickness influence: A 1.6mm thick PCB requires a preheating temperature of 5-8°C higher than a 0.8mm thick PCB, due to the large heat capacity of the thick board, and the heat conduction rate is slow (about 0.8W/(m・K) vs 1.2W/(m・K)). When the PCB thickness exceeds 2.0mm, it is recommended to use dual-zone preheating (60-80°C in zone 1 and 100-120°C in zone 2) to reduce the temperature difference between the upper and lower surfaces.

Coordinated walking speed: At the standard speed of 1.1-1.2m/min, the length of the preheating zone needs to be ≥1.5m to ensure adequate heating. If the speed needs to be increased to 1.5m/min (25% increase in capacity), the preheating temperature needs to be increased by 10-15°C and the preheating zone needs to be extended to 2.0m.

Component heat resistance limit: For PCBs containing sensitive components such as BGA and CSP, the peak preheating temperature should be ≤ to 100°C, and the heating rate should be controlled within 2°C/s to prevent the remelting of the solder joints inside the components.

Typical consequences of insufficient preheating include false soldering due to insufficient flux activity (3-fold increase in incidence), increased solder bead generation (from an average of 15 to 40 per board), and an increase in the percentage of solder joint sharpening to 12%. An enterprise monitors the temperature of the board surface in real time through an infrared thermometer and increases the stability rate of the preheating process window to 95%.

2.         Precise control of tin furnace temperature

Solder temperature is a key parameter that determines the fluidity of solder and the strength of the solder joint. For 63/37 tin-lead solder (melting point 183°C), the optimal operating temperature is 245-255°C, where the solder viscosity is about 0.012Pa・s for optimal flowability. Temperature control should be paid attention to:

Oxidation equilibrium: Above 260°C, the oxidation rate of the tin liquid increases exponentially (2.3 times that of 250°C), resulting in solder joint inclusions and a decrease in strength (from 18MPa to 14MPa).

Temperature uniformity: The temperature difference in the tin furnace should be ≤± 3°C, otherwise there will be solder segregation due to local overheating (lead content deviation ±0.5%). Calibrate thermocouple positions regularly (monthly) to ensure that the measurement point is 5mm above the crest formation zone;

Lead-free adaptation: If using SnCu0.7 lead-free solder, the temperature needs to be increased to 260-270°C, but the tin furnace material (316 stainless steel) needs to be upgraded to prevent corrosion at high temperatures.

The comparative data of a power supply manufacturer shows that when the temperature of the tin furnace is stable at 250±2°C, the qualified rate of the solder joints is 99.2%; When the temperature fluctuated by ±5°C, the pass rate dropped to 95.8%.

3.         Conveyor chain parameter setting

The chain inclination and speed together determine the contact state of the PCB with the tin liquid:

Inclination control: 5-6° is the optimal range, when the PCB forms tangent contact with the tin solution for about 3-4 seconds. An inclination angle of <4° will cause the solder joint to eat too much tin (pad coverage > 120%), increasing the risk of bridging; if the inclination angle is > 7°, the tin intake is insufficient (coverage rate < 80%), which affects the reliability of conduction;

Speed matching: Negatively correlated with tin furnace temperature – 10% faster and 3-5°C higher temperature to compensate for the reduced contact time. When the speed is increased from 1.0m/min to 1.4m/min, the contact time is reduced from 4.2 seconds to 3.0 seconds, and the temperature is synchronously increased from 250°C to 258°C.

Uneven chain operation (jitter > 0.5mm) can lead to periodic defects in solder joints, such as intermittent virtual soldering, uneven tin amount, etc. It is recommended to calibrate the chain tension quarterly to keep the running deviation within 0.3mm.

4.         The air knife system is finely adjusted

The air knife acts as a "dosing control" – removing excess flux (retained at 0.8-1.2mg/cm²) and ensuring uniform application. Its key parameters:

Angle setting: 10° inclination angle (angle between the horizontal line) can make the Потокform a uniform film on the PCB surface, too much angle (>15°) will cause too little flux in the edge area, too much residue in the center area if the angle is too small (<5°);

Wind Speed Control: Adjusts based on flux viscosity, typically 30-50m/s. For high-viscosity flux (>30cP), the wind speed needs to be increased to 60m/s, otherwise it is easy to form droplet accumulation;

Distance optimization: The distance between the air knife nozzle and the PCB surface is 10±1cm, too close will cause local blowing, and too far away will weaken the effect.

A PCB manufacturer used a laser thickness gauge to detect the flux film thickness, combined with the closed-loop adjustment of air knife parameters, to improve the coating uniformity to 90% (film thickness deviation ≤ 10%).

5.         tin liquid impurity control

Impurities such as copper and aluminum in the tin solution can significantly deteriorate the welding performance. When the copper content exceeds 0.3%, the melting point of the solder rises from 183°C to above 190°C, the fluidity decreases by 40%, and the phenomenon of "copper brittleness" occurs, where the shear strength of the solder joint decreases to less than 12MPa.

Impurity control measures include:

Regular testing: monthly sampling and analysis, using atomic absorption spectroscopy to determine the impurity content, and activating early warning when the copper content reaches 0.25%;

Process optimization: reduce the number of PCB tin passes (≤2 times) to avoid excessive dissolution of component pins;

Cleaning maintenance: When the copper content > 0.3%, perform a full furnace cleaning and replace it with new tin (0.5% pure tin needs to be added before the first welding after cleaning to stabilize the alloy composition).

An automotive electronics company has reduced the soldering defect rate caused by impurities from 3.2% to 0.8% by establishing an early warning mechanism for impurities in liquid tin.

System solutions for common welding defects

The defect analysis of wave welding needs to use the "fishbone diagram" method to investigate the root cause from the five dimensions of human, machine, material, method, and ring, and avoid simple attribution.

1. The solder joint is not full and false

80% of such defects are due to the following reasons:

The low temperature of the solder solution (<240°C) leads to insufficient solder fluidity, and the actual temperature needs to be confirmed by an infrared thermometer instead of relying on the header display (usually with a deviation of 5-8°C).

Insufficient flux activity, manifested by the oxide layer of the pad not removed (dark brown), and theПотокwith a higher activator content needs to be replaced (organic acid content increased from 3% to 5%);

If the preheating temperature is too high (>120°C), the flux will decompose in advance and lose the wetting effect, so the temperature of the second zone should be reduced by 10°C and the preheating time of the first zone should be extended.

In one case, the false solder rate was reduced from 7.5% to 1.2% by increasing the solder temperature from 240°C to 250°C while adjusting the flux activator ratio.

2.         Bridge connection and short circuit

Unexpected connections of adjacent solder joints are mainly caused by:

If the flux is applied too much (>1.5mg/cm²), the wind speed of the air knife needs to be increased by 5m/s or the inclination angle to 12°;

The chain inclination angle is too small (<4°), which makes the contact area between the PCB and the tin solution too large, which can be significantly improved by adjusting to 5.5°.

If the tin wave is unstable (fluctuation > 2mm), the tin pump impeller needs to be overhauled to remove the blockage of foreign objects.

In 0.65mm pitch pin soldering, the bridging rate can be reduced from 5% to 0.3% by using the above measures, and the key is to control the surface tension balance when the solder disengages.

3.         PCB surface contamination

Countermeasures for excessive residue or white crystals after welding:

Pre-coated PCB needs to be matched with a special flux: rosin-type flux can effectively avoid "whitening", if no cleaning is required, you need to choose a modified alcohol flux that is compatible with pre-coated rosin;

Hot air leveling PCB should use a low-solids content Поток (<3%), and increase the cleaning water temperature to 60°C to enhance the dissolution of residues.

Control flux solids content: For every 1% increase in solids, the residue increases by approximately 0.2mg/cm², and cleaning is required when exceeding the IPC standard (≤0.5mg/cm²).

A communications equipment company increased the pass rate of PCB board cleanliness from 82% to 99% by replacing the matching flux.

4.         Solder slag residue and rough solder joints

Excessive impurities in the tin liquid (0.3% copper >, 0.05% iron >) are the main triggers, and the steps to solve them include:

Emergency treatment: adding a tin slag reducing agent (such as a special antioxidant) can reduce scum by 50%;

Root cause treatment: Arrange furnace cleaning to completely remove sediment at the bottom of the furnace (the main components are Cu₃Sn, FeSn₂);

Precautions: Install a tin filtration device (50 μm filter) and clean it once a week.

The solder joint roughness (Ra) can be reduced from 3.2 μm to 1.6 μm after clearing, significantly improving solder joint reliability.

Process collaboration and continuous improvement system

The quality control of wave soldering cannot rely on a single parameter optimization, but should establish a closed-loop management mechanism of "parameter-defect-adjustment":

Establish a process database: record the optimal combination of parameters for different products (e.g., PCB thickness 1.6mm corresponding to preheating 100°C, speed 1.1m/min, temperature 250°C), which can be directly called up and fine-tuned during trial production of new products;

Implement statistical process control (SPC): Monitor key parameters (temperature, speed, flux application) in real time and initiate a correction program when the CPK value < 1.33;

Supplier collaboration: Establish a joint test mechanism with Поток and solder suppliers, verify new materials every quarter, and introduce auxiliary materials with better performance.

A large EMS company shortened the trial production cycle of new products by 30% by building a process knowledge management system, and the welding pass rate was stable at more than 99.5%.

The optimization of the wave furnace process is never-ending. With the development of lead-free and high-density, it is necessary to focus on the temperature window adaptation of low-silver solders, the thermal shock protection of miniaturized components, and the application of intelligent parameter self-adjustment systems. Only by transforming process parameter control into systematic knowledge assets can we maintain technical advantages in the fierce competition of the electronics manufacturing industry.
